Top Quality 860r/min Vacuum Degasser For Horizontal Directional Drilling , With Explosion Proof
Introduction

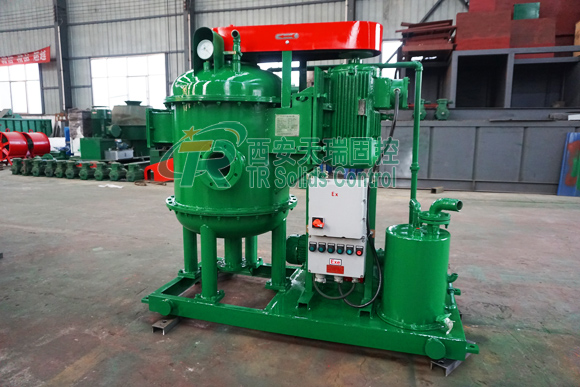

TRZCQ series vacuum degasser is a special equipment and a new type for gas treatment in the drilling fluids. It can get rid of various invasive gas from drilling fluids quickly. Our vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Besides, it can be used as a heavy power agitator and supported applicable to all types of mud recycling system.
The function of vacuum degasser is breaking the air and gas out, such as methane, H2S, and CO from the mud to the surface. Usually drilling fluid is sucked from shaker tank under vacuum force. Vacuum degasser plays the role of agitation in drilling fluids. Based on universal design, TR vacuum degasser can be customized according to your actual demand.
Application
Our TRZCQ series vacuum degasser can be used in these industries: Oil and Gas Drilling, Oil Mud Seperation, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Drilling Waste Management, Water Drilling, Trenchless HDD & Tunnelling, Bored Piling etc.
Features of TRZCQ Series Vacuum Degasser
- Self-priming device enables it to pump drilling fluids without centrifugal pump.
- TR vacuum degasser has high degassing efficiency up to 95%.
- Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid.
- Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
- Gas-water separator design avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
- Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.
Technical Data of TRZCQ Series Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
